Product Line / Jerrican / 25 Litre Jerrican
Technical Specifications

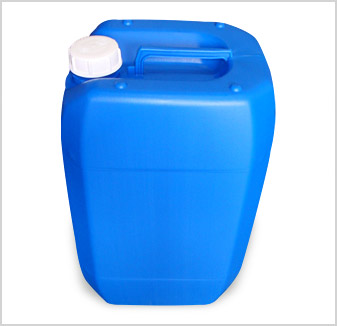

Product Name 25 Litre Jerrican NNF
Product Code JR-25-13-BL JR-25-15-BL
Product Weight 1.3 KGS. 1.5 KGS.
Tolerance +/-0.3 +/-0.3
Minimum Wall Thickness 1.3 mm 1.5 mm

Dimensions
Height 476 mm. +/-5 mm.
Diameter N/A mm N/A mm.
Width 294 mm. +/-5 mm.
Thickness 244 mm. +/-5 mm.
Neck Part 20 mm. +/-1 mm.

Capacity Colour
Brimful 28 litre Blue
Normal 25 Litre Natural White (For JR-25-112-NT)
Un. Number
3H1/Y/150/04
TH/MD005/45/PD



Raw Material
High Molecular Weight High Density Polyethylene (HM - HDPE)
Density = 0.940 - 0.960 g/cm 3
Melt Flow Index (190Oc, LOAD 21.6 kgs) = 1.5 - 12 g / 10 min

Test Results
  (Un Standard) PDI (Pdi Testing)
Leak Test 0.2 Bar 0.5 Bar
Drop Test 1.2 Meter (-18o c) 2.5 Meter, Ambient Temp
Internal Hydraulic Pressure Test 150 Kpa 150 Kpa
Stacking Test 28 Days 28 Days
