| Product Line / Jerrican / 30 Litre Jerrican |
|
|
|

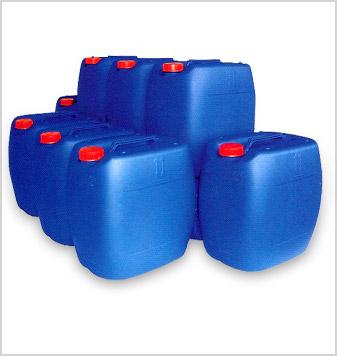

The Mauser 30 Litre Jerrican is easy to handle. It is corrosion free, odorless and non toxic. Together, they have the dimensional compatibility for loading into the International Freight Containers.
 |
Technical Specifications
| Product Name |
30 LITRE JERRICAN C2 |
| Mold Cavity |
No. 3 |
No. 4 |
| Product Code |
JR-30-15 |
JR-30-16 |
| Product Weight |
1.5 KGS |
1.6 KGS |
| Tolerance |
+/-3 |
+/-3 |
Minimum Wall Thickness |
1.5 mm |
1.6 mm |
| Un-Number |
YES - 3H1/Y/200 |
YES - 3H1/Y/200 |

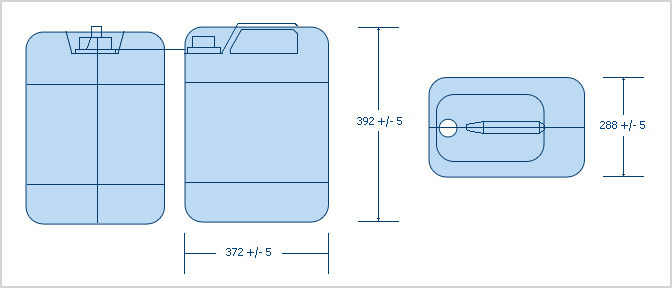

| Dimensions
|
| Height |
392 mm |
+/-5 mm |
| Diameter |
N/A mm |
N/A mm |
| Width |
392 mm |
+/-5 mm |
| Thickness |
288 mm |
+/-5 mm |
|
| Capacity |
Colour |
| Brimful 32 Litre |
Black / Natural |
| Normal 30 Litre |
|
|
| Un. Number |
| 3H1/X/200/06 |
| TH/MD055/49/PD |
|
| Raw Material |
| High Molecular Weight High Density Polyethylene (HM-HDPE) |
| Density = 0.940 - 0.960 g/cm 3 |
| Melt Flow Index (190oc, Load 21.6 Kgs) = 1.5 - 12 g/ 10 min. |
| |
(Un Standard) |
Pdi (Pdi Testing) |
| Leak Test |
0.2 Bar |
0.5 Bar |
| Drop Test |
1.2 Meter (-18o c) |
2.5 Meter, Ambient Temp |
| Internal Hydraulic Pressure Test |
200 Kpa |
200 Kpa |
| Stacking Test |
28 Days |
28 Days |
|
|
| |
|
|
